NRB25

NRB25 (2)
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 335 mm approx. 2.33 m2 Hole Hole

Equivalent: Pleatco PRB25-IN, Unicel C-4326, 42513/DL704, Filbur FC-2375, Darlly SC704, Waterway 817-2500

NRB50

NRB50 (2)
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 335 mm approx. 4.65 m2 Hole Hole

Equivalent: Pleatco PRB50-IN, Unicel C-4950, Filbur FC-2390, Darlly SC706 / 40506, Waterway 817-5000, Jacuzzi 373045, Beachcomber 3005815, Coleman Spas 3301-2145, Hydropool 4520007, Sundance Spas 373-045 (6540-471), Kinedo ACC355, Canadian Spas CSC-50-L, Marquis Spas 20364, Wellis AKU1806, Sunrise Spas R9026110, Waterco 62010

NRB75

nbr75
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 511 mm approx. 6.50 m2 Hole Hole

Equivalent: Pleatco PRB75 / PRB75-M, Darlly SC733 / 40751, Unicel C-4975, Filbur FC-2395, Hydropool 4520008

NWW50-3

NWW50-3 (2)
Diam ext Diam int Height Surface Top Bottom
152 mm 47 mm 194 mm approx. 3.58 m2 Handle Male thread 1"1/2 SAE (46-48 mm)

Equivalent: Pleatco PWW50P3 / PWW50, Darlly SC714 / 60401, Unicel 6CH-940, Filbur FC-0359,Waterway 817-0050, Spa France SF-2C, Procopi 31090195, Canadian Spas KA-10032 (Microban), Wellis AKU1810, Sunrise Spas R9026115, Master Spa X268549

NWW50-4

NWW50-3 (2)
Diam ext Diam int Height Surface Top Bottom
152 mm 47 mm 194 mm approx. 3.58 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PWW50P4

NWW10

NWW10 (2)
Diam ext Diam int Height Surface Top Bottom
108 mm 52 mm 102 mm approx. 1.03 m2 Hole Hole

Equivalent: Pleatco PWW10, Darlly SC750 / 40101, Unicel C-4310, Filbur FC-3077, Waterway 817-0010, Sunrise Spas R9026108

NCAL100

NCAL100 (2)
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 600 mm approx. 9.30 m2 Hole Hole

Equivalent: Pleatco PCAL100, Darlly SC792 / 41001, Unicel C-4995, Filbur FC-2940, Waterway 817-1000

NH6

NH6NEU
Diam ext Diam int Height Surface Top Bottom
70 mm 27 mm 248 mm approx. 0.50 m2 Hole Hole

Equivalent: Pleatco PH6 / PH6-4 / PH6-PAK7, Unicel T-380 / T-380R / C-2604, Filbur FC-2310 / FC-3060, Autres 24101-19, 17-2006, R173321, OTC/6-4, ST/6, 4-05-0070

NWW50L

NWW50L (2)
Diam ext Diam int Height Surface Top Bottom
127 mm 44 mm 335 mm approx. 4.01 m2 Handle Female thread 1"1/2 SAE (44 mm)

Equivalent: Pleatco PWW50L, Unicel 4CH-949, Filbur FC-0172, Darlly SC757 / 40508, Waterway 817-4050, Angel Spa FIL-PRB50-AVIS, Centurion SC757, Sunrise Spas R9026104, Rising Dragon RD50 / RD800-2110

NWW35L

NWW35L
Diam ext Diam int Height Surface Top Bottom
128 mm 44 mm 216 mm approx. 3.01 m2 Handle Female thread 1"1/2 SAE (44 mm)

Equivalent: Pleatco PWW35L, Waterway 817-4035, Unicel 4CH-935, Sunrise Spas R9026113, Proline P4CH-935

NRB35

nrb35
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 235 mm approx. 3.25 m2 Hole Hole

Equivalent: Pleatco PRB35 ou PRB35-IN, Darlly SC705 / 40353, Filbur FC-2385, Unicel C-4335, Waterway 817-3501, Canadian Spas CSC-35, Wellis AKU1608 / AKU0116, Sunrise Spas R9026105

NSF25-50

NSF25-50 (2)
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 264 mm approx. 2.99 m2 Hole Hole

Equivalent: Pleatco DSF25-50, Unicel C-4429, Filbur FC-3082

NAS35-4

NPG50-4
Diam ext Diam int Height Surface Top Bottom
149 mm 47 mm 197 mm approx. 3.50 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PAS35P4

NAT25-4

NPG50-4
Diam ext Diam int Height Surface Top Bottom
151 mm 47 mm 181 mm approx. 2.50 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PAT25P4

NCS50N

NFF42TC-4 (2)
Diam ext Diam int Height Surface Top Bottom
203 mm 53 mm 229 mm approx. 5.00 m2 Hole Spigot (60 mm)

Equivalent: Pleatco PCS50N, Darlly SC744 / 80501, Unicel C-8450, Filbur FC-3310

NCS75N

NFF42TC-4 (2)
Diam ext Diam int Height Surface Top Bottom
203 mm 53 mm 330 mm approx. 7.00 m2 Hole Spigot (60 mm)

Equivalent: Pleatco PCS75N, Darlly SC749 / 80753, Unicel C-8475, Filbur FC-3320

NLBS75

NLBS75
Diam ext Diam int Height Surface Top Bottom
135 mm 54 mm 375 mm approx. 7.00 m2 Hole Hole

Equivalent: Pleatco PLBS75, Claralys CLBS75, Darlly SC777 / 50651, Unicel C-5374, Filbur FC-2971, Waterway 817-0015, Rainbow Plastics R173600, Clearwater Resort, Sunrise Spas R9026119

NMAX50-3

NWW50-3 (2)
Diam ext Diam int Height Surface Top Bottom
144 mm 47 mm 203 mm approx. 3.99 m2 Handle Male thread 1"1/2 SAE (46-48 mm)

Equivalent: Pleatco PMAX50P3

NMAX50-4

NWW50-3 (2)
Diam ext Diam int Height Surface Top Bottom
144 mm 47 mm 203 mm approx. 4.64 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PMAX50P4, Claralys CMAX50P4, Zenity 5ZH-35, Darlly SC718 / 50353, Unicel 5CH-35, Filbur FC-0300

NPG50-4

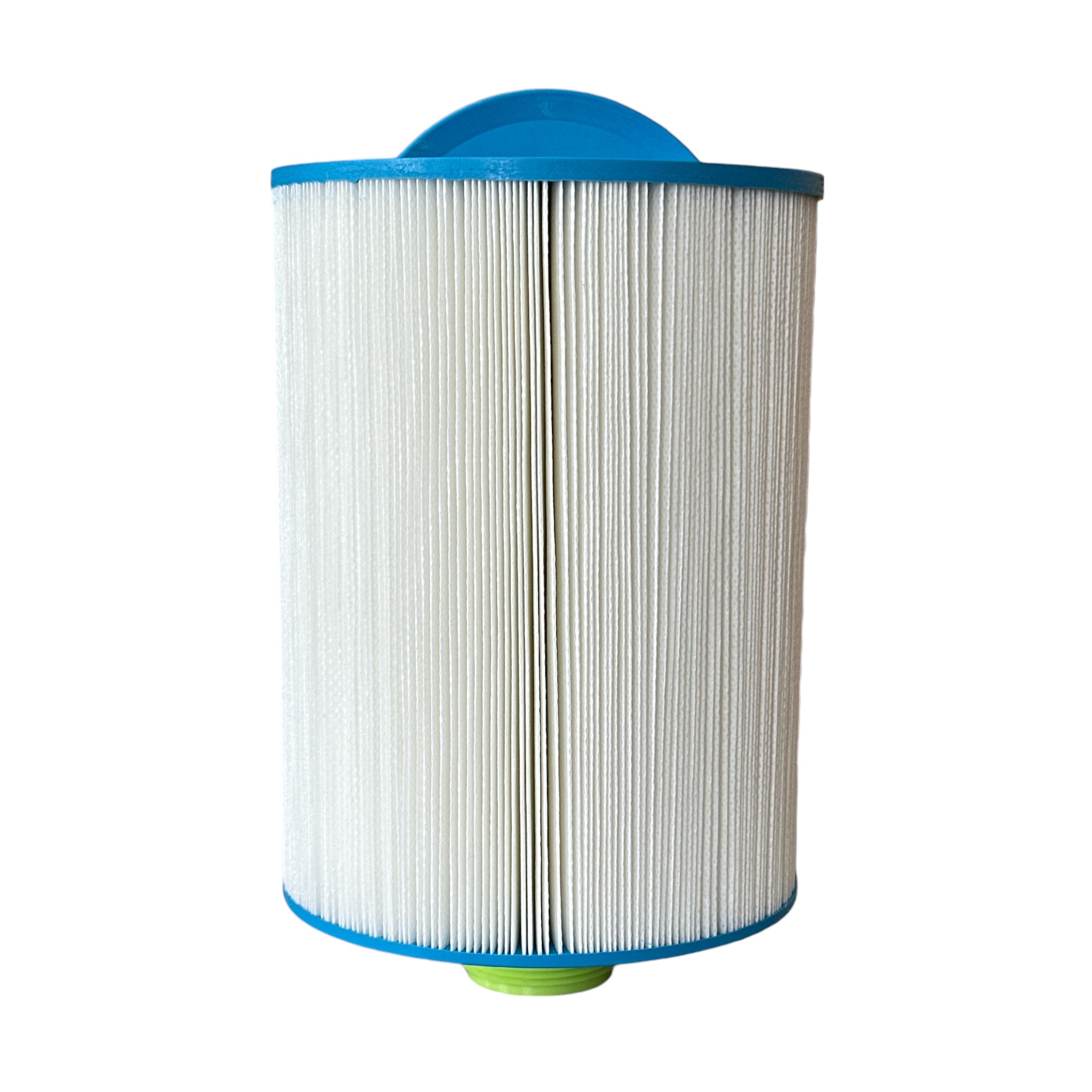

NPG50-4
Diam ext Diam int Height Surface Top Bottom
152 mm 47 mm 203 mm approx. 5.00 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PPG50P4, Darlly 60508, Unicel 6CH-49, Filbur/Clarathon FC-0314, Sunrise Spas R9026100

NRB17.5SF

NWW10 (2)
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 117 mm approx. 1.62 m2 Hole Hole

Equivalent: Pleatco PRB17.5SF, PRB17.5SF-PAIR, Darlly SC726 / 40352, Unicel C-4401, Filbur FC-2386,Waterway 817-3510, Sundance Spas 6000-134, Sunrise Spas R9026106

NTL18-4

NSANT20-3 (2)
Diam ext Diam int Height Surface Top Bottom
117 mm 47 mm 203 mm approx. 2.00 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PTL18P4, Darlly SC716 / 40191, Unicel 4CH-21, Filbur FC-0121, Saratoga 20245-238

NTL47W-4

NSANT20-3 (2)
Diam ext Diam int Height Surface Top Bottom
152 mm 47 mm 216 mm approx. 4.50 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PTL47W-P4

NWK30

NRB50 (2)
Diam ext Diam int Height Surface Top Bottom
149 mm 49 mm 267 mm approx. 3.00 m2 Hole Hole

Equivalent: Pleatco PWK30,Darlly SC712 / 60301, Unicel C-6430, Filbur FC-3915

NWK35B

NWK35B (2)
Diam ext Diam int Height Surface Top Bottom
160 mm 49 mm 356 mm approx. 3.50 m2 Hole Hole

Equivalent: Pleatco PWK35B, Unicel C-6433, Filbur FC-3920, Hot Springs/Watkins 78286, 78161

NLBS50

NLBS50 (2)
Diam ext Diam int Height Surface Top Bottom
135 mm 54 mm 257 mm approx. 5.00 m2 Hole Hole

Equivalent: Pleatco PLBS50, Darlly SC756 / 50451, Unicel C-5345, Filbur FC-2970, Waterway 817-0014, Rainbow Plastics R173584, Sunrise Spas R9026121

NVT25N-4

NVT25N-4 (2)
Diam ext Diam int Height Surface Top Bottom
111 mm 47 mm 194 mm approx. 2.50 m2 Closed Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PVT25N-P4, Filbur FC-0186, Vita Spa 179192

NSANT20-3

NSANT20-3 (2)
Diam ext Diam int Height Surface Top Bottom
121 mm 47 mm 179 mm approx. 2.00 m2 Handle Male thread 1"1/2 SAE (46-48 mm)

Equivalent: Pleatco PSANT20P3, Darlly SC728 / 42524, Unicel 4CH-925, Filbur FC-0126

NRB25SF

NRB25SF (2)
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 165 mm approx. 2.50 m2 Hole Hole

Equivalent: Pleatco PRB25SF, Darlly SC732 / 40505, Unicel C-4405, Filbur FC-2387, Waterway 817-5010

NFF42TC-4

NFF42TC-4 (2)
Diam ext Diam int Height Surface Top Bottom
133 mm 47 mm 238 mm approx. 4.00 m2 Closed Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PFF42TC-P4, Filbur FC-2400 / FC-2402, Freeflow 303279, Unicel 4CH-23

NRB12-4

NRB12-4 (2)
Diam ext Diam int Height Surface Top Bottom
70 mm 27 mm 495 mm approx. 1.00 m2 Hole Hole

Equivalent: Pleatco PRB12-4, Unicel C-2612, Filbur FC-2340, Rainbow R173326

NRB100

NRB100 (2)
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 673 mm approx. 9.29 m2 Hole Hole

Equivalent: Pleatco PRB100, Unicel C-4999, Filbur/Clarathon FC-2397, Darlly 41002, Proline P-4999

NJW25

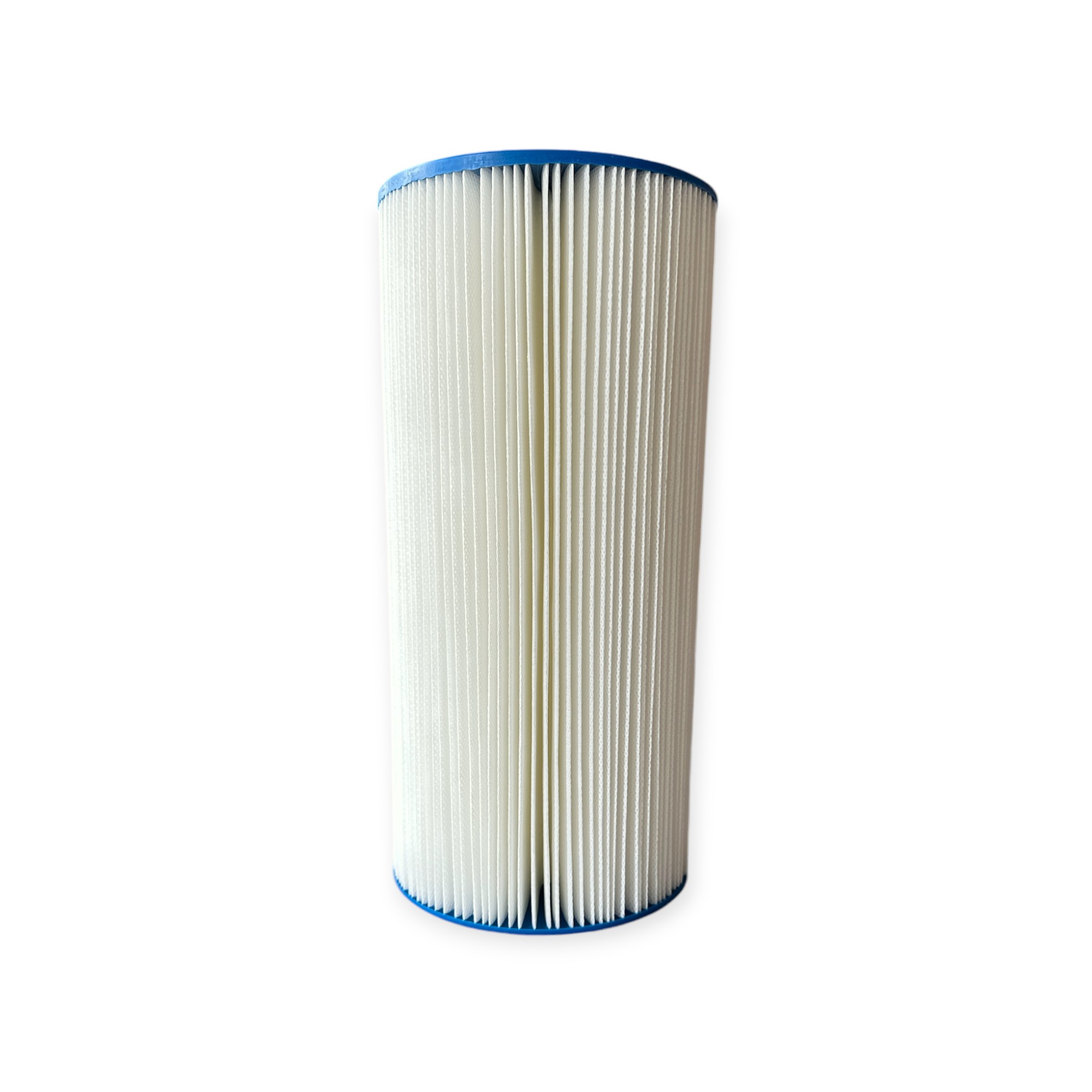

NJW25 (2)
Diam ext Diam int Height Surface Top Bottom
144 mm 54 mm 301 mm approx. 2.32 m2 Hole Hole

Equivalent: Pleatco PJW25, Darlly 50504, Filbur FC-1305/FC-3092, Unicel C-5302 und C-5624, Magnum JWB25, Jacuzzi 2590000

NCST120

Professionelle Produktbilder-Photoroom
Diam ext Diam int Height Surface Top Bottom
135 mm 54 mm 765 mm approx. 11.15 m2 Hole Hole

Equivalent: Pleatco PCST120, Darlly SC769/51351, Unicel C-5351, Filbur FC-2976, Waterway 817-0147

NWWDFX75

NCAL100 (2)
Diam ext Diam int Height Surface Top Bottom
167 mm 60 mm 338 mm approx. 6.97 m2 Hole Hole

Equivalent: Pleatco PWWDFX75, Unicel C-6375, Waterway 817-0018

NWWDFX100

NRB100 (2)
Diam ext Diam int Height Surface Top Bottom
167 mm 60 mm 452 mm approx. 9.29 m2 Hole Hole

Equivalent: Pleatco PWWDFX100, Proline P-6310, Unicel C-6310, Waterway 817-0019

NWL25-4

NSANT20-3 (2)
Diam ext Diam int Height Surface Top Bottom
143 mm 47 mm 173 mm approx. 2.32 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PWL25P4, Claralys CWL25P4, Darlly SC809 / 50653, Wellis AKU1610 / AM00243

NSN25-4

NPG50-4
Diam ext Diam int Height Surface Top Bottom
152 mm 47 mm 152 mm approx. 2.32 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PSN25P4, Sunrise Spas R9026101

NSG27.5-4

NWW50L (2)
Diam ext Diam int Height Surface Top Bottom
121 mm 47 mm 289 mm approx. 2.55 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PSG27.5P4

NSG13.5-4

NSANT20-3 (2)
Diam ext Diam int Height Surface Top Bottom
121 mm 47 mm 151 mm approx. 1.25 m2 Handle Male thread 1"1/2 MPT (46-48 mm)

Equivalent: Pleatco PSG13.5P4, Unicel 4CH-19, Filbur FC-0122

NRB12L-4

NRB12-4 (2)
Diam ext Diam int Height Surface Top Bottom
73 mm 27 mm 743 mm approx. 4.65 m2 Hole Hole

Equivalent: Pleatco PRB12L-4, Unicel C-2613, Filbur FC-2350,Rainbow R173327

NCAL75

Professionelle Produktbilder-Photoroom
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 600 mm approx. 6.96 m2 Hole Hole

Equivalent: Pleatco PCAL75, Unicel C-4970, Zenity Z-4970, Filbur FC-2930, Waterway 817-7500

NMT25

NJW25 (2)
Diam ext Diam int Height Surface Top Bottom
127 mm 54 mm 302 mm approx. 2.32 m2 Hole Hole

Equivalent: Pleatco PMT25, Proline P-4332, Unicel C-4332, Sonfarrel 30-220032

NDY36-3

NWW50-3 (2)
Diam ext Diam int Height Surface Top Bottom
127 mm 47 mm 216 mm approx. 3.25 m2 Handle Male thread 1"1/2 SAE (46-48 mm)

Equivalent: Pleatco PDY36P3

NDM30 Oval

PDM30-ovale.jpg-2000x2000
Diam ext Diam int Height Surface Top Bottom
165x135 mm 76 / 103x76 mm 245 mm approx. 2.79 m2 Hole Hole Oval

Equivalent: Pleatco PDM30; Darlly SC817 / 61269; Dream Maker Spas 461269
